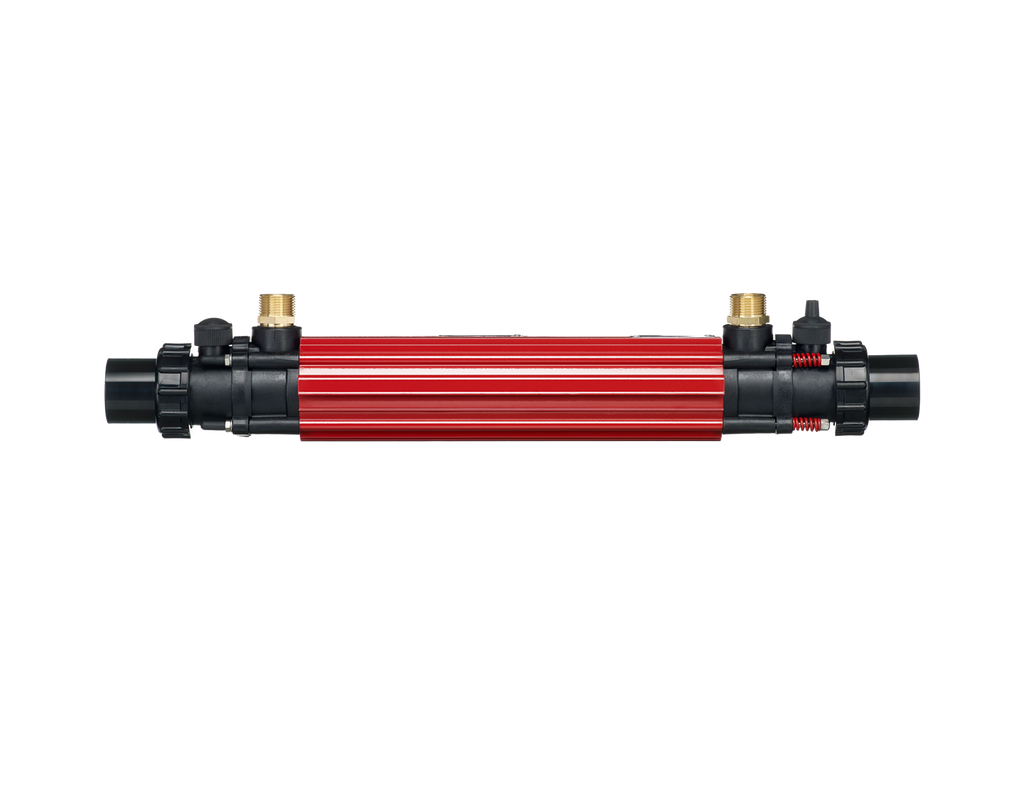

The unique design and robust construction of the G2 Heat Exchanger offers an unrivalled heat transfer surface area, making it one of the most efficient products on the market.
Features & Benefits
Four models ranging from 30-kW to 122-kW

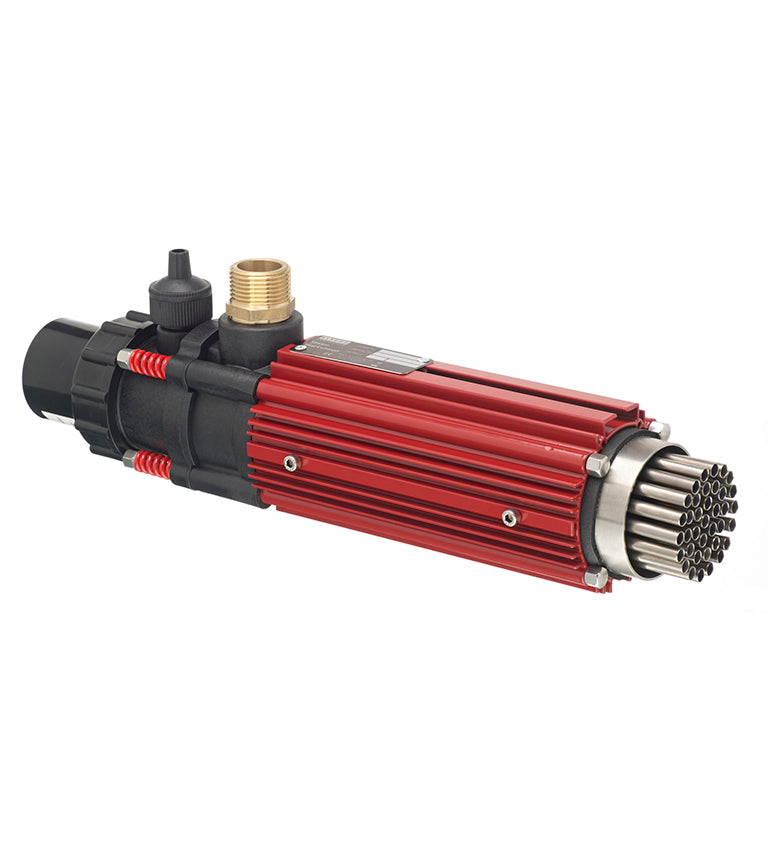

Titanium tube bundle
BS 316L Stainless Steel primary casing
Salt and sea water compatible
4 bar pressure tolerance
Low pressure drop
With optional Smart Touchscreen Controller and Booster Pump
Temperature and flow sensor port
Floor and wall mountable
| Product Code: | Standard Power Output: | Dimension ‘L1’ | Dimension ‘L2’ | Dimension ‘L3’ | Net Weight | Gross Weight | Volume | ||||
| [mm] | [mm] | [mm] | [kg] | [kg] | [m³] | ||||||
| G2-HE-30T | 30-kW (102K BTU) | 540 | 426 | 247 | 3.5 | 3.9 | 0.016 | ||||
| G2-HE-49T | 49-kW (167K BTU) | 710 | 596 | 417 | 4.5 | 5.0 | 0.021 | ||||
| G2-HE-85T | 85-kW (290K BTU) | 840 | 726 | 547 | 5.3 | 6.3 | 0.026 | ||||
| G2-HE-122T | 122-kW (416K BTU) | 1000 | 886 | 707 | 6.4 | 7.6 | 0.037 | ||||
