Evolution Aqua Nexus+ Eazy 320 Pond & Koi Filter

  • Sale
  • Regular price £1,595.00
Tax included. Shipping calculated at checkout.

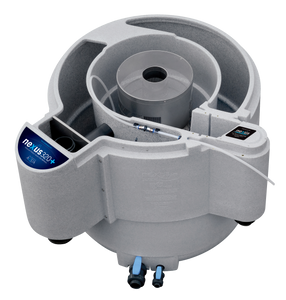

Evolution Aqua have launched the Nexus320+ and Nexus220+ filtration systems. Building on the tried and tested technology that has been ever present in the world renowned Nexus, the team at Evolution Aqua have gone even further to enhance their number one Koi pond filter.

The Nexus320+ and Nexus220+ filters now come with a new filter media called K+Media in the moving bed outer chamber for vastly improved biological filtration and faster filter maturation. The new Nexus+ filters are also supplied “auto ready”, with factory fitted fixings already in place, making it even easier to upgrade to the Nexus Automatic Cleaning System.

Nexus320+ Specification

Maximum Pond Size - 34,000 Litres
Recommended Flow Rate - 11,000 Litres/hr
Maximum Flow Rate - 13,000 Litres/hr
Volume of water in Nexus - 840 Litres
Amount of K1 Micro in EAZY Filter - 20 Litres
Amount of K+Media supplied in Bio Chamber - 100 Litres
Maximum Capacity for K+Media - 300 Litres

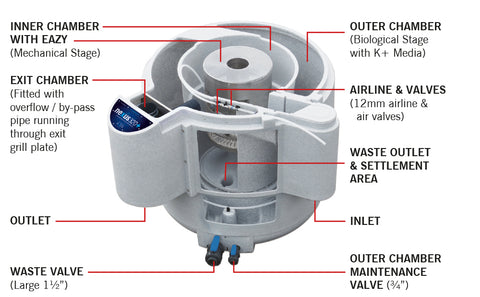

OVERVIEW OF HOW THE NEXUS+ WORKS

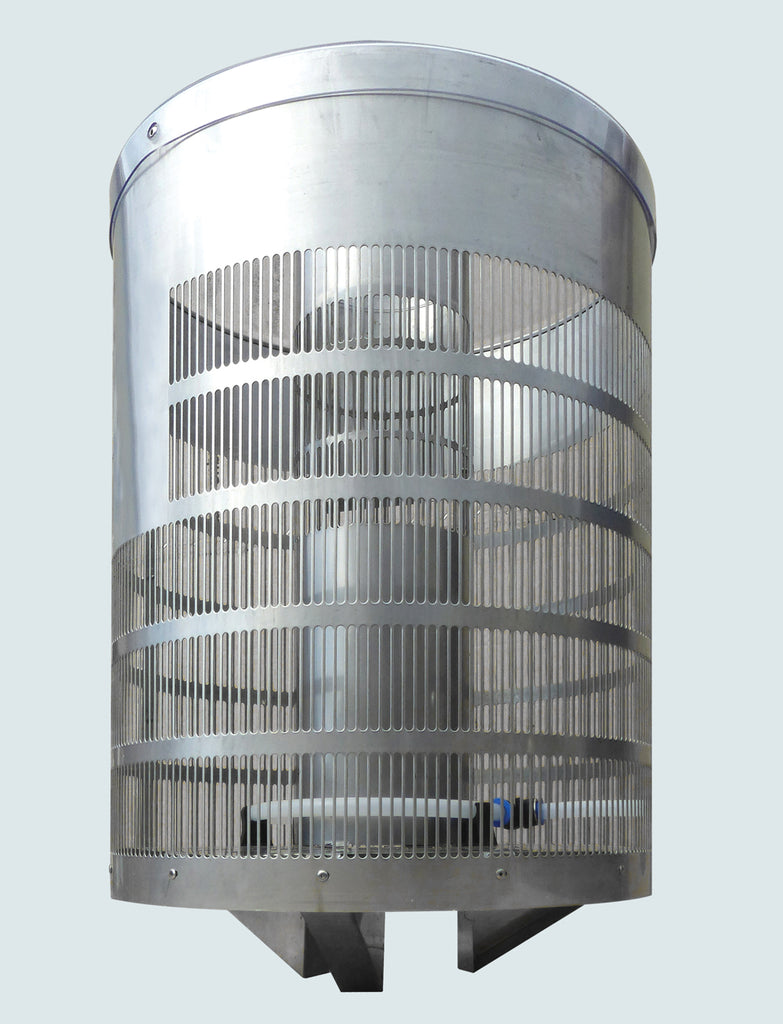

The Nexus+ filter is an innovative biological and mechanical filter system in one. Water enters the Nexus+ via the inlet into the inner chamber which forms as a vortex allowing larger solids to settle out. The water then passes through the Eazy where the finer particles are removed at the mechanical stage of filtration. From the Eazy the water passes into the outer chamber where the biological stage of filtration takes place using the new K+Media Moving Bed.

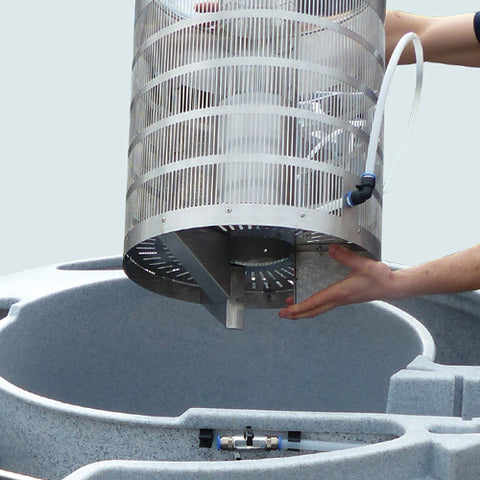

The water then passes through the grill into the Exit Chamber, where it is returned to the pond through the outlet. The Eazy is cleaned by diverting the air from the Outer Chamber to the Eazy using the air valves or by installing the automatic cleaning system which makes the cleaning process even easier, as the filter can be cleaned even when you’re not there.

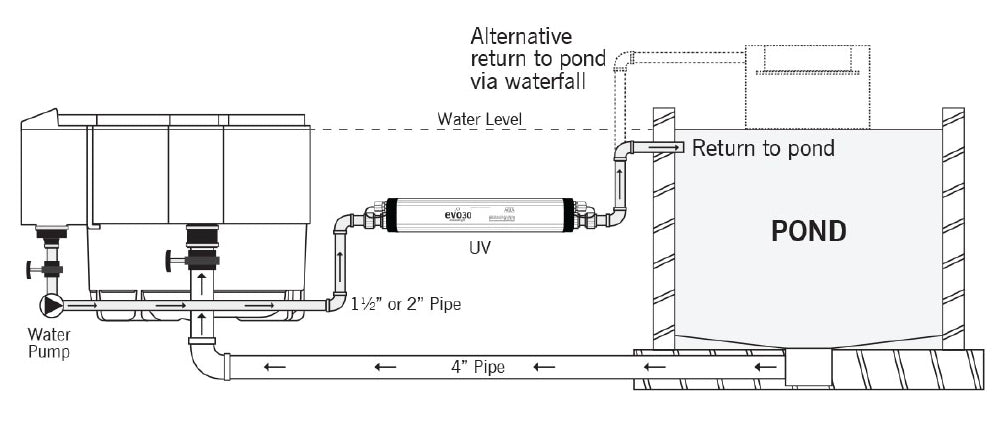

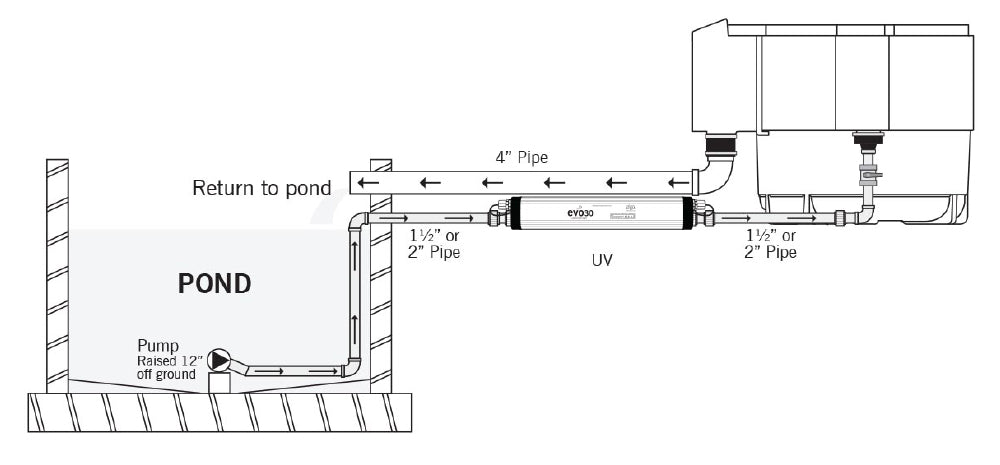

Nexus+ filter systems can be easily installed on gravity-fed or pump-fed set ups.


SPECIFICATIONS

Nexus320+

Max. pond size = 34,000 Litres / 7,500 UK Gallons / 9,000 US Gallons
Max. flow rate = 13,000 Litres/hr / 2,859 UK Gallons/hr / 3,431 US Gallons/hr
Recommended flow rate = 11,000 Litres/hr / 2,420 UK Gallons/hr / 2,905 US Gallons/hr
Volume of water in nexus = 840 Litres / 185 UK Gallons / 222 US Gallons
Amount of K1 Micro supplied in EAZY filter = 20 Litres of K1 Micro inside the EAZY
Amount of K+Media supplied in Bio Chamber = 100 Litres of K+Media in bio chamber
Max. capacity for K+Media = 300 Litres K+Media in bio chamber

Nexus220+
Max. pond size = 18,000 Litres / 4,000 UK Gallons / 4,800 US Gallons
Max. flow rate = 10,000 Litres/hr / 2,200 UK Gallons/hr / 2,640 US Gallons/hr
Recommended flow rate = 6,000 Litres/hr / 1,320 UK Gallons/hr / 1,585 US Gallons/hr
Volume of water in nexus = 510 Litres / 112 UK Gallons / 135 US Gallons
Amount of K1 Micro supplied in EAZY filter = 18 Litres of K1 Micro inside the EAZY
Amount of K+Media supplied in Bio Chamber = 50 Litres of K+Media in bio chamber
Max. capacity for K+Media = 150 Litres of K+Media in bio chamber
