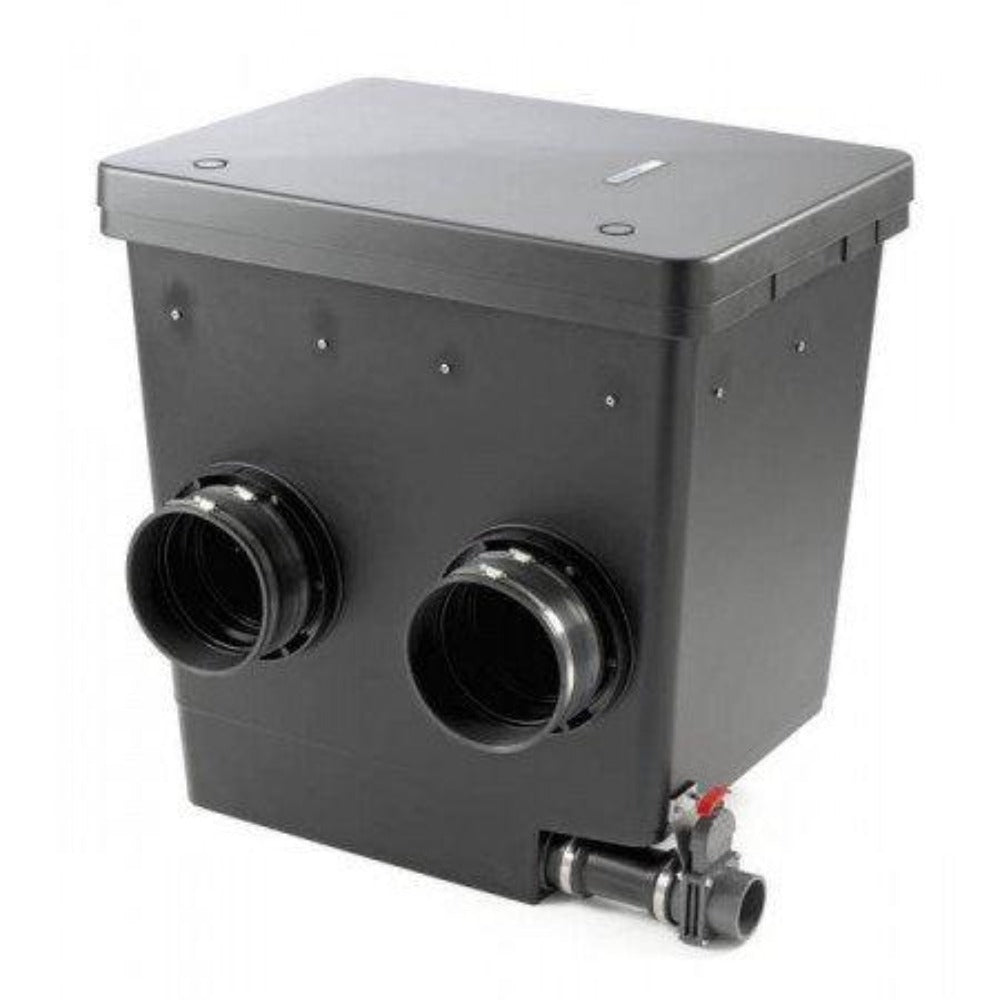

Oase Individual Module

  • Sale
  • Regular price £1,414.99
Tax included. Shipping calculated at checkout.

Product characteristics

  • Highly effective decomposition of pollutants and nutrients, thanks to professional filter media and moving bed process (MovingBed)
  • Mature, professional technology with more than 3 years of development time
  • Innovative and reliable product «made in Germany» (except pressure pump)
  • Space-saving pump and UVC chamber for
  • Maximum flexibility in the connection through 2 x DN110 and 2" transitions

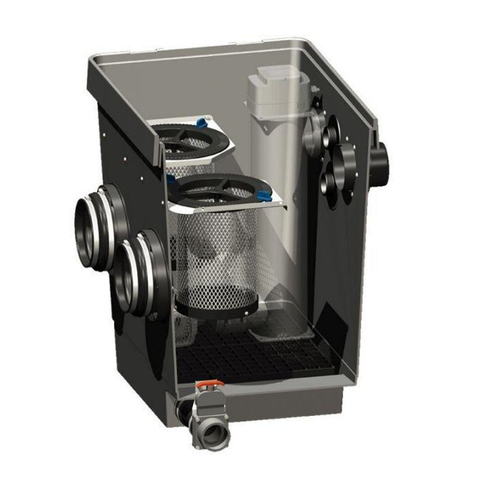

  • To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media ‚‚ up to 8 liters fill volume
  • Integrated bottom drain with high quality, finely engineered slide valve

Technical data

Dimensions (L x W x H) mm 830 x 600 x 820
Net weight kg 37.00
Guarantee (+ extended guarantee on request) Years 2 + 1
Material GRP Duroplast/stainless steel
Number of inlets EA 2
Connection inlet mm 180
Number of outlets EA 4
Connections, Outlet mm 50
Connections, Outlet 2 x 2" / 2 x DN 110
Connections, sludge discharge DN 75
Min. flow rate l/h 10000
Max. flow rate l/h 33000
Connection to AquaMax Eco Gravity, Bitron Gravity
Installation height above water level cm 11.5
Type of use A gravity-fed system, Pump fed system
Other Pollutant discharge incl. slide valve
Item number 50771
EAN 4010052507712
