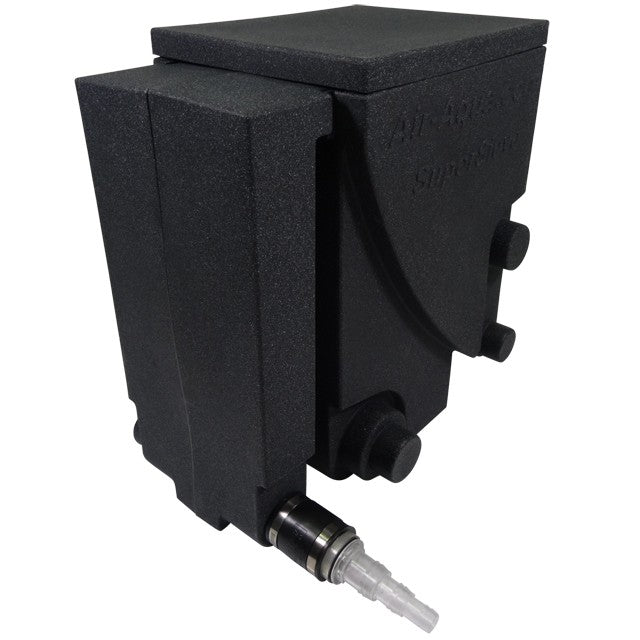

SuperSieve Pump Fed
The SuperSieve Pump Fed is designed for ponds where the pump is in the pond. The dirty water is first pumped into the SuperSieve and is then discharged to a biological filter, for example. When the SuperSieve pump is used as a preliminary filter, the biological filter remains significantly cleaner, thus sparing you the unpleasant and time-consuming task of cleaning the bio filter.
Small dimensions L42 x W39 x H60 cm
Up to 20000 lph (20 m3/hr)
Large return connections
Including dirt discharge gutter
Comes complete with lid
Large screen element 32 cm x 47cm
2 x 75/110mm outlet
2 x 63mm inlet
2 x 75mm overflow protection
2 x 63mm dirt discharge
Connections available on both sides
The SuperSieve Pump Fed is characterised by an ingenious design. It’s construction allows connections to be fitted to both sides. Furthermore, the SuperSieve is made up of 2 parts:
The pre-chamber into which the water is pumped.
The chamber where the screen element is located
The closed pre-chamber pushes the water at right angles to the screen element. This improves dirt separation and increases the flow through the screen element. The water thus passes through the curved screen above the element so that water does not mix with dirt that has already been separated out. The design of the screen means that this separated dirt is pushed towards the dirt gutter.
The screen element is accurately sealed with specially manufactured rubbers on the housing itself so that no water (and thus no dirt) can pass through the screen element unfiltered. The housing is equipped with a lid to reduce the noise and slow down the growth of algae and bacteria on the screen element.
The housing has the following connections: an overflow protection, a dirt gutter with discharge and two 110 mm discharges. The 110 mm discharge dimension is particularly significant because it allows water to exit the housing quickly. The SuperSieve pump thus processes a good 20 m3/hr with two 110 mm outlets.
The SuperSieve pump is available in marble black.
